7401-25

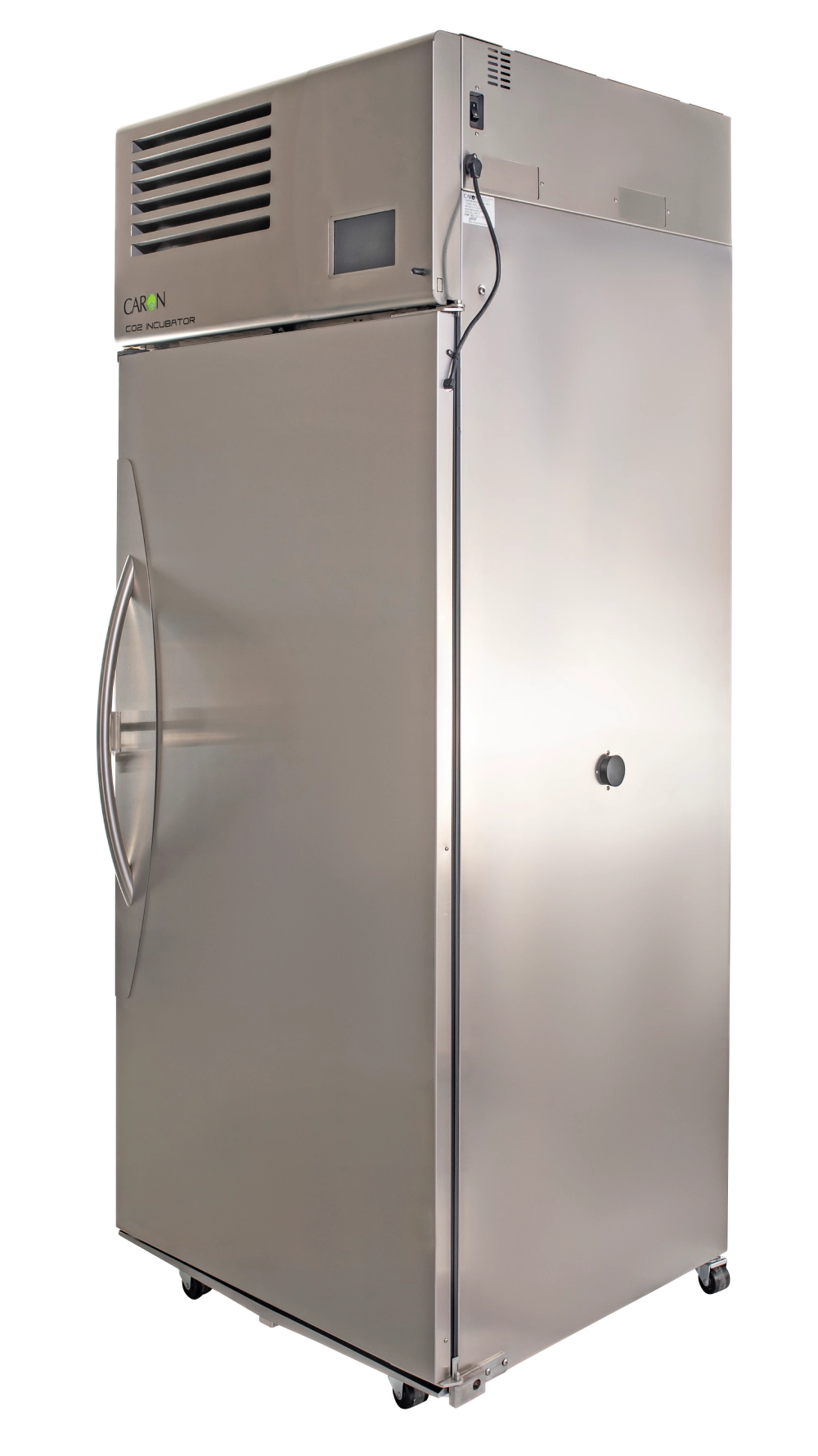

Elevate your research with Caron's reach-in CO2 incubators, designed for high-demand culture environments such as production scale cell culture, vaccine and antibody production, and personalized medicine. Our units provide critical sterilization capabilities while providing more than four times the culture capacity of a standard benchtop incubator in the same floor footprint as a traditional double stack.
Key features
Adaptable refrigeration to handle any internal heat load for optimal temperature control
Temperature range of 10°C above ambient to 60°C
Modular shelving to support multiple culture vessel options
Optional patented 2-hour dry hydrogen peroxide sterilization cycle with no post-cycle cleanup
Ready for cGMP environments with our clean room ready upgrade options
Available in free-standing or in-wall configurations
Our 7401 units are shaker ready with standard heavy-duty shelves
Elevate Your Lab Operations with Caron's Shaker-Ready CO2 Incubators
Our Shaker-Ready CO2 Incubators are meticulously designed to meet the highest standards, providing you with unparalleled benefits:
Clean Conditions
Swift Sterilization: Experience our patented 2-hour dry H202 cycle for rapid and validatable chamber sterilization, eliminating the need for post-cycle reassembly or wipe-down.
Effortless Cleanup: Our tool-free interior disassembles in under 3 minutes, thereby facilitating a quick and hassle-free cleaning process.
Contamination Prevention: Our "dry chamber" controlled RH system removes the risk of contamination-prone water pans.
Cleanroom-Ready: Designed for use in demanding cleanroom environments, with available cleanroom-ready accessory kits.
Facility-Friendly
Seamless Integration: Built to work seamlessly on your site, with standard plug-in electrical and low power usage to reduce setup and operating costs.
Essential Features: Each chamber is equipped with corrosion-resistant stainless-steel interior, glass doors, electrical outlets, access ports, casters, and leveling feet.
User-Friendly Controls: Intuitive touchscreen controls offer powerful functionality with minimal training required.
Easy Installation: Our 25 ft³ units roll in through standard door openings, ensuring ease of installation.
| DIMENSIONS & WEIGHTS | |
|---|---|
| Model Size |
7401 25 |
| Interior Dimensions | 32” W x 27” D x 52.7” H (81.3cm x 68.6cm x 133.9cm) |
| Interior Construction | 2B Finish Solid Stainless Steel (Type 304) |
| Exterior Dimensions | 35.5” W x 33.3” D* x 77.1” H (90.2cm x 84.6cm x 195.8cm) |
| Exterior Construction | Powder Coated Cold Rolled Steel |
| Work Space | 25 ft³ (708 liters) |
| Shelves Total | 2 Standard*** |
| Shelf Construction | Reinforced Perforated Stainless Steel (Type 304) |
| Shelf Capacity | 150 lbs. Each (68kg.) |
| Shelf Dimensions | 29.25” W x 24.45” D (74.3cm x 62.1cm) |
| Shipping Weight | 725 lbs. (825 lbs. include export shipping crate ) |
| ELECTRICAL | |||
|---|---|---|---|
| Model Size |
7401 | ||
| 25-1 | 25-2 | 25-3 | |
| Voltage | 115V | 208 / 230V | 230 V |
| Frequency | 60Hz | 60Hz | 50Hz |
| Current | 16A | 8A | 8A |
| TEMPERATURE | ||
|---|---|---|
| Model | 7401 -25 | |
| Size | ||
| Temperature Range | 20 to 60°C (At 200W Max Heat Load At 20°C) | |
| Temperature Control | ± 0.1ºC | |
| Temperature Uniformity | ± 0.3ºC | |
| Temperature Sensor | RTD | |
| Humidity Range | Elevated Up to 95% at 37°C | |
| Controlled Humidity Range | Ambient to 95% RH / ±3% RH | |
| CO2 Range | 0-20% CO2 | |
| CO2 Contro | ±0.1% CO2 | |
| CO2 Sensor | Infrared CO2 Sensor | |
| Internal Outlets | 3 / GFCI Protected | |
Questions? Explore Caron's Scientific for life sciences and industry. Request a quote or call our expert team now.
Key Accessories
One-Handed Door Latch
Secure yet easy chamber access. Pull handle to open, door latches automatically. Available with or without integral lock, for 25 & 33 ft3 units.
Hydrogen Peroxide Sterilization
Unique validated 2-hour dry H2O2 system. Provides 12 log sterilization with no post-cycle cleanup. Consists of H2O2 module, system prep, and disposable H2O2 canisters.
Controlled Humidity
Precise RH control without messy water pans or flooded unit bottoms. Simple atomizerbased & sensor-controlled system generates no heat and is low maintenance.
Condensate Recirculator
Provides a source of Type II equipment water and eliminates the need for a drain line. Includes sediment & DI filters, and a 7-gallon reservoir. Compact design fits between chambers and rolls out for easy access
Additional Shelving
Perforated, solid, wire, and heavy-duty variants. All shelves made of polished type 304 stainless steel and include shelf brackets. Factory-installed kits available to swap all shelves for another type.
