Order Parts for 7315-22
Ordering spare parts and Preventative Maintenance Kits for your equipment is easy! Browse by Model, Spare Part/Accessory categories or key word search on Spare Part/Accessory number or name.
7315-22
Create the perfect environment for your research with Caron's comprehensive lineup of plant growth chambers.
Key features
Optional high-intensity -door 4-color LED chambers or single-door, multi-shelf fluorescent plant tissue culture unit
LED and Fluorescent lighting to 1,500 micromoles
Temperature range of 10 to 50C
The right size for your needs from 22 cu.ft. to 75 cu.ft.
Low-heat emissions
Adaptable light settings
Options including: size, growth height, and light intensity
Our fluorescent chambers offer cost-effective, reliable lighting while our LED technology allows for low heat and adjustable light conditions. All of our models guarantee consistent results, effortless setup, and use, alongside eco-friendly features to minimize costs over time. Customizable sizes, growth heights, and light intensities ensure you find the chamber tailored to your research needs. At Caron, fostering growth has never been easier or more sustainable.
| DIMENSIONS & WEIGHTS | |
|---|---|
| Model Size |
7315 22 |
| Interior Dimensions | 22.5"W x 28.5"D x 57.8"H (57 cm x 72 cm x 146 cm) |
| Exterior Dimensions | 30"W x 35.1"D* x 81.5"H (76 cm x 89 cm x 207 cm) |
| Shelves Total | 6 |
| Shelf Dimensions | 21.6”W x 26.5”D (55 cm x 67 cm) |
| Shipping Weight | 625 Lbs. (775 Lbs. with export shipping crate) |
| ELECTRICAL | |||
|---|---|---|---|
| Model Size |
7315 | 7315 | |
| 22-1 | 22-2 | 22-3 | |
| Voltage | 115V | 208 / 230V | 230 V |
| Frequency | 60Hz | 60Hz | 50Hz |
| Current | 12A | 8A | 8A |
| TEMPERATURE | ||
|---|---|---|
| Model | 7315 -22 | |
| Size | ||
| Lights On | 15°C to 45°C Temp Range | |
| Lights Off | 10°C to 45°C Temp Range | |
| Temperature Sensor | 3-wire RTD / ± 0.2°C | |
Questions? Explore Caron's Scientific for life sciences and industry. Request a quote or call our expert team now.
Key Accessories
Controlled Humidity
Precise RH control without messy water pans or flooded unit bottoms. Simple atomizer-based & sensor-controlled system generates no heat and is low maintenance..

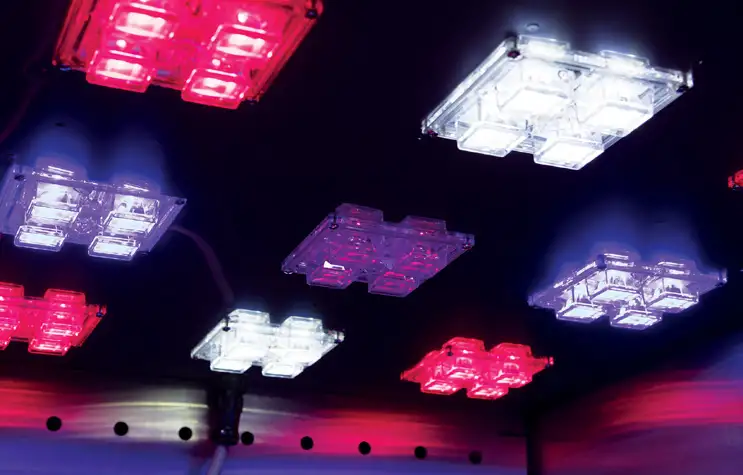

Colored Lighting
4-color LED’s for user-adjustable spectra. Includes far-red, red, blue, and white modules. Adjustable by shelf (22 ft³) or door (50/75 ft³). Available on General and High-Intensity models.

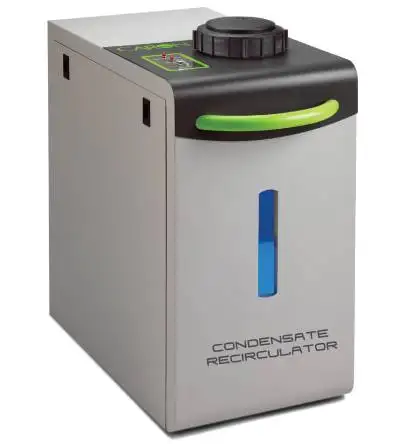

Condensate Recirculator
Provides a source of Type II equipment water and eliminates the need for a drain line. Includes sediment & DI filters, and a 7-gallon reservoir. Compact design fits between chambers and rolls out for easy access.

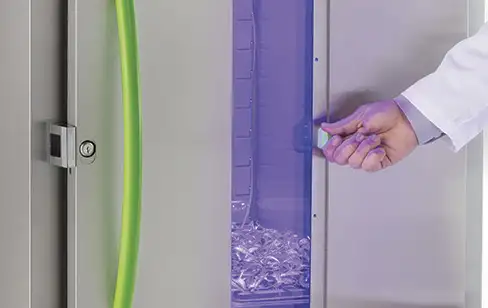

Chamber Viewing Window
Full-length sliding viewing window makes all plants visible without opening the door and disturbing growth conditions.

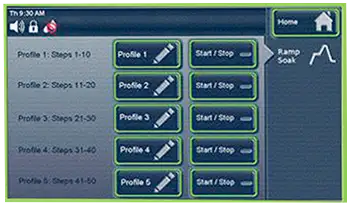

Ramp & Soak Programming
Ramp & soak, 5 linkable profiles, up to 50 steps total. Auto or manual ramp duration, up to 255 process loops. Easy programming, pop-up status screen included.
