7340-25
Caron's Insect Rearing Chambers offer an ideal environment for cultivating drosophila and other flying insects.
Key features
Electrostatic-coated refrigeration coils
All stainless-steel interiors, ensuring an easy to clean environment
Optional full-spectrum or "no blue" narrow-spectrum LED lighting
Snap-out interior for simplified maintenance
Optional two-hour hydrogen peroxide sterilization cycle that effectively eradicates mites and mold
Temperature range of 10-40C
Optimal chamber sizes of 25 and 33 cu.ft.
Our “clean chamber” design offers a snap-out interior for easy cleaning and an optional two-hour H2O2 sterilization cycle to eradicate mold and mites completely. Completely customize your research environment with our optional LED lighting which includes full-spectrum and drosophila-specific “no blue” variants as well as an external controlled humidification system. With Caron, advancing your insect research has never been simpler.
| DIMENSIONS & WEIGHTS | |
|---|---|
| Model Size |
7340 25 |
| Interior Dimensions | 32" W x 27" D x 52.7" H (81.3cm x 68.6cm x 133.9cm) |
| Exterior Dimensions | 35.5" W x 33.3" D* x 77.1" H (90.2cm x 84.6cm x 195.8cm) |
| Work Space | 25 ft3 (708 liters) |
| Shelves Total | 4 Standard / 25 Maximum |
| Shelf Dimensions | 29.25" W x 24.45" D (74.3cm x 62.1cm) |
| Shipping Weight | 725 lbs. (825 lbs. with export shipping crate) |
| ELECTRICAL | |||
|---|---|---|---|
| Model Size |
7340 | 7340 | |
| 25-1 | 25-2 | 25-3 | |
| Voltage | 115V | 208 / 230V | 230 V |
| Frequency | 60Hz | 60Hz | 50Hz |
| Amps | 16A | 10A | 8A |
| TEMPERATURE | ||
|---|---|---|
| Model | 7340 -25 | |
| Size | ||
| Temperature Range | 10ºC to 40ºC | |
| Temperature Control | ±0.1˚C | |
| Temperature Uniformity | ±0.3˚C | |
| Temperature Sensor | 3-wire RTD | |
Questions? Explore Caron's Scientific for life sciences and industry. Request a quote or call our expert team now.
Key Accessories
One-Handed Door Latch
Secure yet easy chamber access. Pull handle to open, door latches automatically. Available with or without integral lock, for 25 & 33 ft³ units.
Hydrogen Peroxide Sterilization
Unique validated 2-hour dry H2O2 system. Provides 12 log sterilization with no post-cycle cleanup. Consists of H2O2 module, system prep, and disposable H2O2 canisters.
Controlled Humidity
Precise RH control without messy water pans or flooded unit bottoms. Simple atomizerbased & sensor-controlled system generates no heat and is low maintenance.

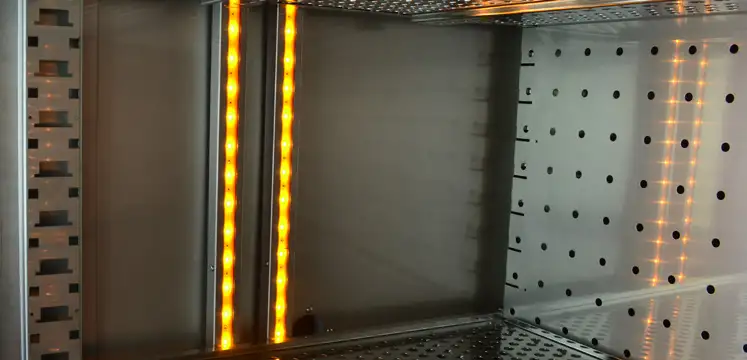

“No-Blue” Colored Lighting
Narrow 500-700 nanometer lighting eliminates lethal blue light effects documented in flying insects. LED modules are wall-mounted, sealed, and removable without tools for service or cleaning.
Full-Spectrum Lighting
Low intensity white diurnal lighting. Efficient LED technology for long life and low power use. Wall-mounted sealed modules removable without tools for service or cleaning.
Condensate Recirculator
Provides a source of Type II equipment water for units with optional controlled RH and eliminates the need for a drain line. Includes sediment & DI filters, and a 7-gallon reservoir. Compact design fits between chambers and rolls out for easy access.
