Maximize efficiency and sustainability in your lab with Caron’s Condensate Recirculator.
Transforms both standard tap water and environmental chamber condensate into lab-quality 1 megOhm water.
Multiple in-line filters to reduce waterborne contamination
Compact and easy to install
Cost-effective alternative to large-scale water systems,
Perfectly suited for areas without floor drains
Not every lab enjoys easy access to equipment-grade water or nearby floor drains for their environmental chambers. The CRSY stands as the compact and easily installable water feed option you’ve been searching for. This innovative system not only filters stored tap water and unit drain water, but also allows you to strategically position humidified chambers without the need for costly whole-lab water systems, bottled purified water, or retrofitted floor drains.
Model CRSY102 Features:
Purifying Contaminated Water
Generates Type II equipment-grade water from any quality tap water
Utilizes dual DI and carbon block/sediment filters to eliminate scale & organics
Sensor-controlled to prevent expensive over or under-processing
Decreases water consumption by filtering and recirculating the chamber condensation
Space Efficient Performance
Slim design provides feed water for up to 2 chambers
Fits seamlessly into current lab space without the need for special enclosures or closets
Shields humidity control chambers from damage caused by scaling deposits
7-gallon (28-liter) storage tank extends time between refills
Maintenance Simplified
Effortless rolling for full accessibility during maintenance
Convenient side access panels ensure quick filter replacement
Featuring an antimicrobial element, with an optional UV light for water disinfection
Visual low water alarm to alert you immediately
Back-lit water reservoir ensures easy at-a-glance monitoring of water levels
Elevate your laboratory operations with CRSY102 – the key to savings, sustainability, and streamlined performance.
SPECIFICATIONS | |
---|---|
Model Size |
CRSY102 (-1, -4) |
Input Water Quality | Potable Tap Water |
Output Water Quality* | 100-125 kΩ-cm |
Exterior Dimensions | 14” W x 26.5” D x 26.6” H (35.5 cm x 67.3 cm x 67.7 cm) |
Exterior Material | Durable Powder Coated Metal |
Water Reservoir | 7 Gallons (26.5 liters) |
Alarms | Visual Low Water & Replace Filter Indicators |
Casters | 4, Non-Locking |
Weight, Shipping | 125 lbs. (57 kg) / 200 lbs. (91 kg)** |
Weight, Empty | 84 lbs. (34 kg) |
ELECTRICAL | ||
---|---|---|
Model Size |
||
CRSY102-1 | CRST102-4 | |
Voltage | 115V | 230 V |
Frequency | 60Hz | 50/60Hz |
Current | 5A (NEMA 5-15P Plug) | 2A (CEE 7/7 Plug) |
OPTIONAL ACCESSORIES | ||
---|---|---|
Stock No. | DESCRIPTION | |

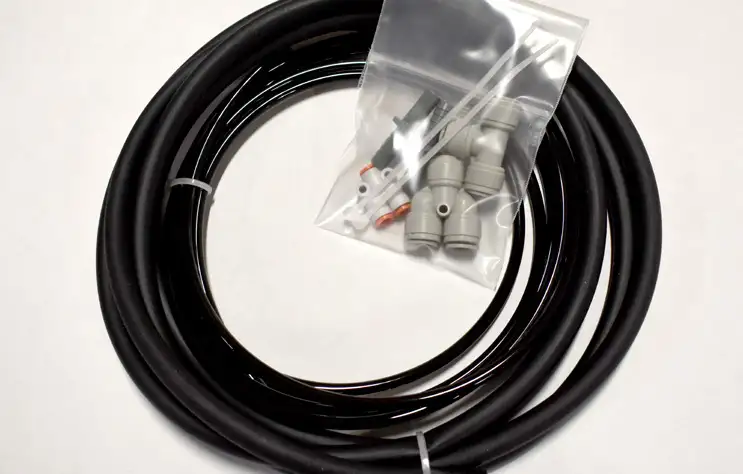

CRSYKIT | Fitting and Tubing Kit for Connection to Two Humidified Chambers | |

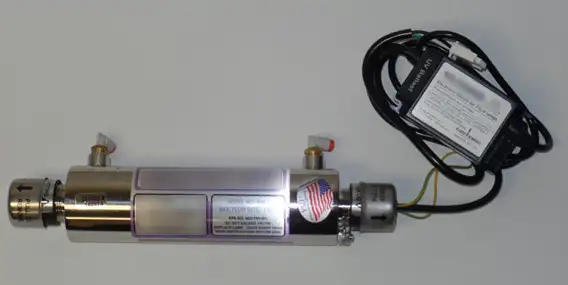

LGHT601 | UV Germicidal Water Purifying Lamp |
