Order Parts for 7003-33 Incubator
Ordering spare parts and Preventative Maintenance Kits for your equipment is easy! Browse by Model, Spare Part/Accessory categories or key word search on Spare Part/Accessory number or name.

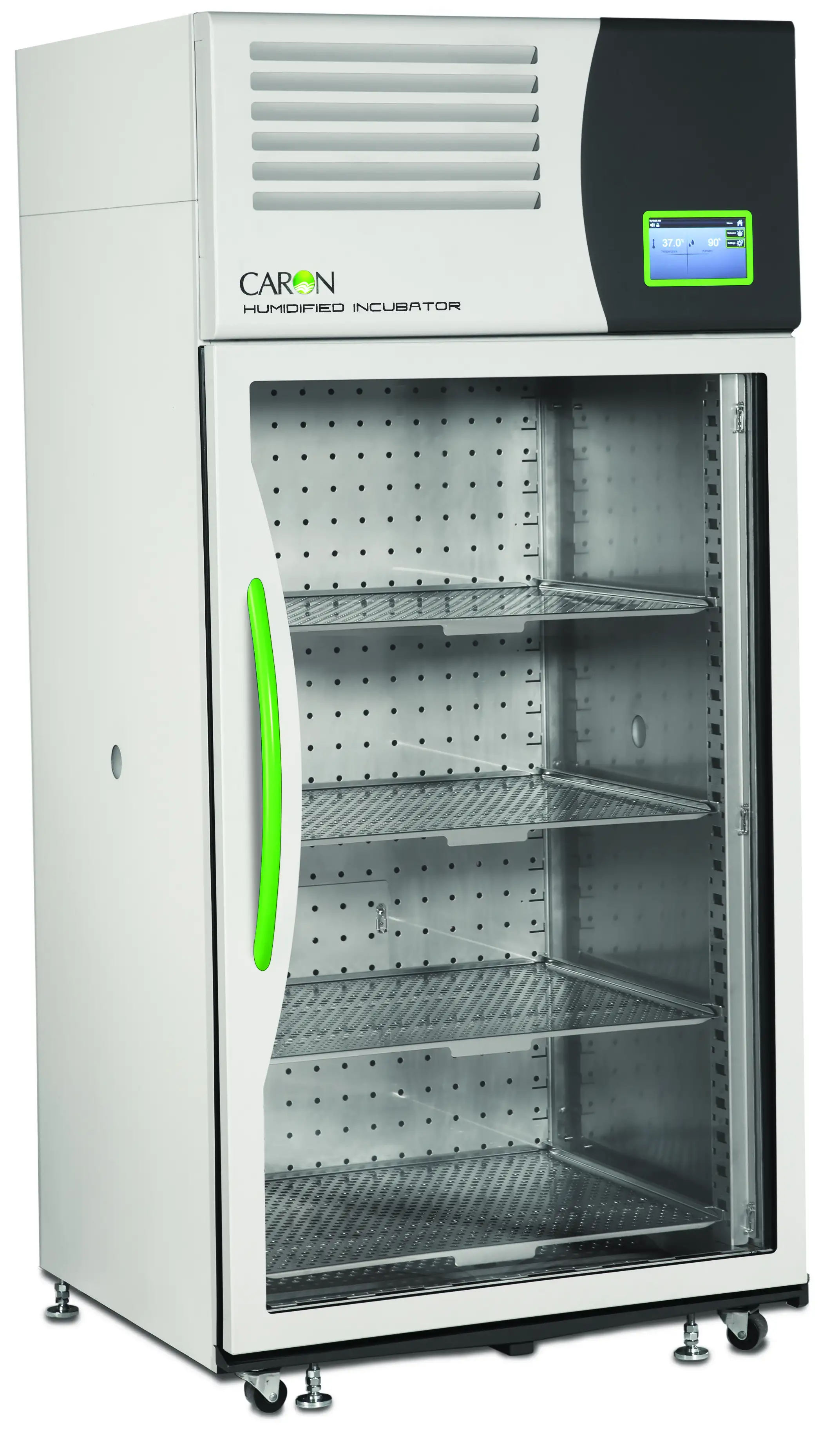

7003-33
Caron's 7002 & 7003 chambers are designed with your testing needs in mind, ensuring reliable temperature and humidity control across all sample volumes.
Key features
Engineered to perform in real-world conditions
Temperature control from 10°C above ambient to 70°C
Handles a variety of product loads
The right size for your needs from 10 cu.ft. to 33 cu.ft.
Controlled relative humidity to 95%
Raise your testing capabilities with Caron’s versatile heated and heat/RH controlled incubators. Engineered for a variety of raised temperature applications, our chambers offer a temperature range from ambient plus 10°C to 70°C, along with controlled humidification for precise testing conditions. Not only are Caron’s chambers easy to install, operate and maintain; Caron’s incubators are built with eco-friendly technology, making them the smart choice for all of your testing needs.
| Model Size |
7003 33 |
|---|---|
| Interior Dimensions | 32” W x 27” D x 65.7” H (81.3 cm x 84.6 cm x 166.9 cm) |
| Exterior Dimensions | 35.5” W x 33.3” D* x 90.1” H (90.2 cm x 84.6 cm x 228.9 cm) |
| Work Space | 33 ft³ (934 liters) |
| Shelves Total | 5 Standard / 31 Maximum |
| Shelf Dimensions | 29.25” W x 24.45” D (74.3 cm x 62.1 cm) |
| Shipping Weight | 765 lbs. (-1,-2) / 915 lbs. (-3)** *Add 2.75” for handle. **Includes Export Shipping Crate. |
| Model Size |
33-1 | 7003 33-2 |
33-3 |
|---|---|---|---|
| Voltage | 115 V | 208 / 230V | 230 V |
| Frequency | 60Hz | 60Hz | 50Hz |
| Current | 12A | 6A | 6A |
| Model | 7003 -33 | |
|---|---|---|
| Size | ||
| Temperature Range | 10ºC above Ambient to 70ºC | |
| Temperature Control | ±0.1°C | |
| Temperature Uniformity | ±0.3°C | |
| Temperature Sensor | 3-wire RTD | |
Questions? Explore Caron's Scientific for life sciences and industry. Request a quote or call our expert team now.
Key Accessories

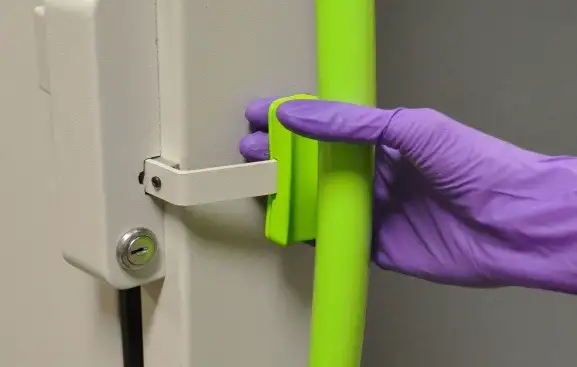

One-Handed Door Latch
Secure yet easy chamber access. Pull handle to open, door latches automatically. Available with or without integral lock, for 25 & 33 ft³ units.
Column Air Dryer
Permits chamber operation down to very low RH setpoints. Requires external compressed dry air source. Noise suppression kit also available for in-lab use.

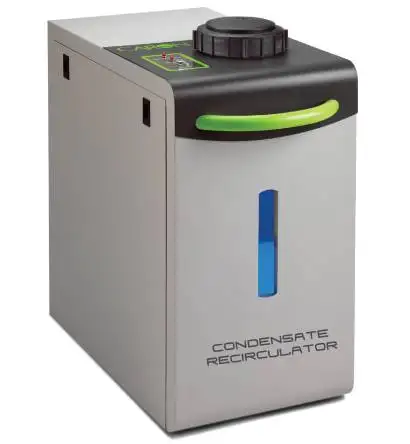

Condensate Recirculator
Provides a source of Type II equipment water and eliminates the need for a drain line. Includes sediment & DI filters, and a 7-gallon reservoir. Compact design fits between chambers and rolls out for easy access.

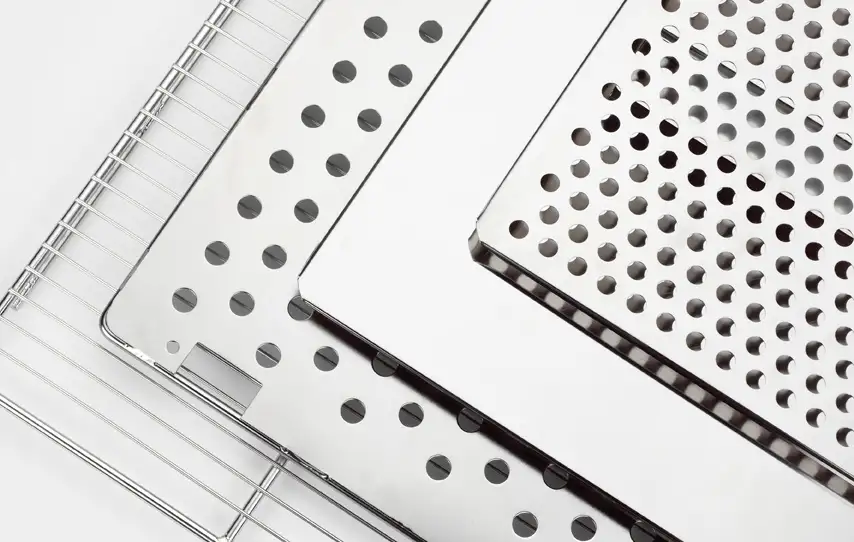

Additional Shelving
Perforated, solid, wire, and heavy-duty variants. All shelves made of polished type 304 stainless steel and include shelf brackets. Factory-installed kits available to swap all shelves for another type.
